- Available in a range of integral lengths from 9 ¾ to 40 inches, with a wide selection of end treatments to fit common filter housing designs
- 100% polypropylene materials of construction for chemical and thermal compatibility
- Absolute-rated cartridge filter available in nine distinct filter grades
Highlights
- Available in a range of integral lengths from 9 ¾ to 40 inches, with a wide selection of end treatments to fit common filter housing designs
- 100% polypropylene materials of construction for chemical and thermal compatibility
- Absolute-rated cartridge filter available in nine distinct filter grades

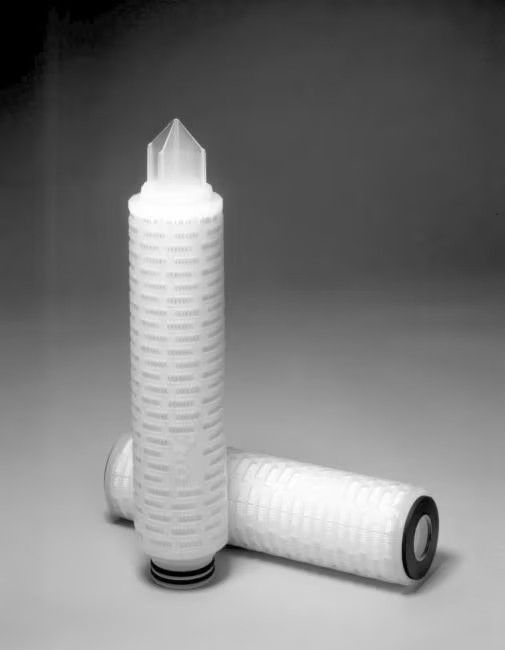

Our absolute-rated Betafine™ XL Filter Cartridge Series is made of a 100% polypropylene pleated filter featuring Advanced Pleat Technology (APT). This product is appropriate for use in a wide range of applications, including: food and beverage, industrial and electronics.
The Betafine™ XL series filter cartridge features 100% polypropylene construction that provides chemical and thermal compatibility in many demanding process fluid applications. The filter media is constructed from continuous micro-fibers that provide a uniform matrix.
There are nine distinct absolute-rated filter grades, beginning at 70 microns, ranging to the very fine 0.2 micron rating. Our Betafine XL filters are absolute-rated to Beta 1000 (99.9% efficiency at each respective rating). Additionally, filters come in a range of integral lengths from 9 ¾ to 40 inches with a wide selection of end treatments to fit common filter housing designs.
Advanced Pleat Technology (APT)
Pleated filters may offer a large gross surface area, but when the media is packed too tightly into the cartridge, only part of the surface area is usable – resulting in both flow restrictions and limited contaminant holding capacity. The "blind" or unusable area commonly occurs near the inside diameter, where the pleats are packed most tightly. The Betafine™ XL Filter Cartridge features our Advanced Pleat Technology (APT) design for extended service life. This design maximizes the useful surface area while maintaining open flow paths between media pleats.
Typical Applications:
- Machine tool lubrication, detergents, process and waste water
- Reverse osmosis (RO) protection and pre-filtration
- Solvent, bulk chemical, and process filtration
Specifications
| Details |
Application | Buffer and Media Filtration, Buffer/Media Filtration for Biopharmaceutical Manufacturing, Bulk Chemical Filtration, Diatomacious Earth (DE) Trap Filtration, Endotoxin Removal, Endotoxin Removal for Biopharmaceutical Manufacturing, Filter Validation for Pharmaceutical Production, Final Filtration for Particulates in Soft Drinks, Industrial Filtration, Particle Reduction in Bottle Water Manufacturing, Particle Reduction in Distilled Spirits Filtration, RO Protection and Prefiltration, Solids Removal, Solids Removal, Recovery & Reclaim, Solvent & Bulk Chemical Filtration, Solvent Filtration, Sterilizing Grade Filtration, Sterilizing Grade Filtration (liquid and gas), Sterilizing Grade Filtration for Biopharmaceutical Manufacturing, Turbidity and Particle Control in Soft Drink Water, Vent and Air Filtration, Vent/Air Filtration for Biopharmaceutical Manufacturing, Water Filtration for Beer Applications, Water Filtration for Wine Applications |
Brands | 3M™ Betafine™ DP Series |
| Material | DP40PP005DD BETAFINE-D LF CTG |
Component and Assembly Materials | Polypropylene |
Effective Filtration Area | 0 NP |
Effective Filtration Area (Metric) | 0 NP |
End Configuration | 222 O-Ring & Flat Cap, 222 O-Ring and Flat Cap, No Reinforcing Ring, 222 O-Ring and Flat Cap, Polysulfone Ring, 222 O-Ring and Spear, 222 O-Ring and Spear, Polysulfone Ring, 222 O-Ring and Spear, Stainless Steel Ring, 226 O-Ring and Spear, No Reinforcing Ring, 226 O-Ring and Spear, Polysulfone Ring, 226 O-Ring and Spear, Stainless Steel Ring, Double Open End (DOE), SOE w/ Stainless Steel Spring |
End Modification | 222 O-ring & Flat Cap, No Reinforcing Ring,Double Open End,222 O-ring & Spear, No Reinforcing Ring,222 O-ring & Flat Cap, Stainless Steel Ring,226 O-ring & Spear, No Reinforcing Ring,222 O-ring & Spear, Polysulfone Ring,226 O-ring & Spear, Polysulfone Ring,222 O-ring & Spear, Stainless Steel Ring,226 O-ring & Spear, Stainless Steel Ring,222 O-ring & Flat Cap, Polysulfone Ring,SOE w/Stainless Steel Spring |
Factory ISO Certification | No ISO Certification information available |
Factory Integrity Tested | No |
Filter Material | Polypropylene |
Filter Technology | Non-woven |
Filter Type | Surface |
Flow Rate (Imperial) | 0.0 NP |
Flow Rate (Metric) | 0 NP |
Flow Rate (lpm) | 0 NP |
Gasket/O-ring Material | EPR, FEP/PFA Encapsulated Fluorocarbon, FEP/PFA Encapsulated Silicone, Fluorocarbon, Nitrile, Polyethylene, Silicone |
Industries | Industrial |
Maximum Operating Temperature (Celsius) | 80 ℃ |
Maximum Operating Temperature (Fahrenheit) | 176 ℉ |
Micron Rating | 0 NP |
Pleat Type | Advanced Pleat Technology (APT) |
Product Form | Cartridge |
Product Series | DP |
Product Type | Cartridge |
Series | 7012592689 |
Units per Case | 15.0,1.0,10.0,30.0 |
| Dimensions and Classifications |
Overall Diameter (Imperial) | 2.62 in |
Overall Diameter (Metric) | 6.65 cm |
Overall Height (Imperial) | 0 NP |
Overall Height (Metric) | 0 NP |
Overall Length (Imperial) | 9.75 in, 10 in, 19.5 in, 20 in, 29.25 in, 30 in, 39 in, 40 in |
Overall Length (Metric) | 24.765 cm, 25.4 cm, 49.53 cm, 50.8 cm, 74.295 cm, 76.2 cm, 99.06 cm, 101.6 cm |
Overall Width (Imperial) | 0 NP |
Overall Width (Metric) | 0 NP |
