No IPA pre-wetting and system flushing required
Enhanced contaminant reduction capacity
Excellent downstream cleanliness out of the package
Frequently viewed resources
Tech Data Sheet (PDF, 680KB)
Highlights
No IPA pre-wetting and system flushing required
Enhanced contaminant reduction capacity
Excellent downstream cleanliness out of the package
Economic alternative to PTFE filter cartridges

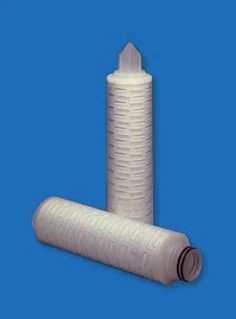

Our LifeASSURE™ IMC Series Filter Cartridge is a high efficiency naturally hydrophilic Nylon 6,6 filter elements designed to meet the exacting requirements of deionized (DI) water, critical parts cleaning, and industrial chemical applications.
Ideally suited for DI water, critical parts cleaning and other chemical applications
Utilizing Advanced Pleat Technology (APT), the LifeASSURE™ IMC Filter cartridges (PDF, 730.88 Kb) provides enhanced flow characterizes with minimal pressure drop. This filter is available in single and multiple length cartridges with 0.1, 0.2, 0.45, 0.65 and 0.80µm ratings along with various end modifications. The naturally hydrophilic Nylon 6,6 membrane provides low extractable, long filter life and enhanced contaminant reduction. LifeASSURE™ IMC filter cartridges are ideally suited for DI water, critical parts cleaning, and other chemical applications where high efficiency contaminant reductions at 0.1, 0.2, 0.45, 0.65, and 0.80 µm is required.
Applications
DI water
Critical parts cleaning
Chemicals
Specifications
| Details |
Application | Process Water Filtration |
Brands | LifeASSURE™ |
Component and Assembly Materials | Polypropylene |
Effective Filtration Area | 11 ft², 22 ft², 33 ft² |
Effective Filtration Area (Metric) | 1 m², 2 m², 3.1 m² |
End Configuration | Double Open End (DOE), Single Open End (SOE) |
End Modification | Double Open End,222 O-ring & flat cap,226 O-ring & spear,222 O-ring & spear |
Factory Integrity Tested | Yes |
Filter Material | Nylon 6,6 |
Filter Technology | Membrane |
Filter Type | Surface |
Flow Rate (Imperial) | 0.0 NP |
Gasket/O-ring Material | EPR, Silicone |
Grade | IMC010, IMC020, IMC045 |
Industries | Industrial |
Maximum Operating Temperature
(Celsius) | 80 ℃ |
Maximum Operating Temperature
(Fahrenheit) | 176 ℉ |
Micron Rating (Absolute) | 0.1 Absolute, @ 99.9%, 0.2 Absolute, @ 99.9%, 0.45 Absolute, @ 99.9% |
Pleat Type | Advanced Pleat Technology (APT) |
Product Form | Cartridge |
Product Series | IMC |
Product Type | Pleated Membrane |
Recommended Change-out
Differential Pressure (Imperial) | 35 psid @ 77°F |
Recommended Change-out
Differential Pressure (Metric) | 2.4 bar @ 25°C |
Series | LifeASSURE™ IMC Series |
Units per Case | 6.0 |
| Dimensions and Classification |
Overall Diameter (Imperial) | 2.75 in |
Overall Diameter (Metric) | 7 cm |
Overall Length (Imperial) | 10 in, 20 in, 30 in |
Overall Length (Metric) | 25.4 cm, 50.8 cm, 76.2 cm |
