Effective reduction of metal ions to <50ppt
Higher capacity when compared to membrane purifiers
Tortuous path with high internal surface area of the 3M™ media matrix
Frequently viewed resources
Tech Data Sheet (PDF, 231KB)
User Instructions (PDF, 1008KB)
Highlights
Effective reduction of metal ions to <50ppt
Higher capacity when compared to membrane purifiers
Tortuous path with high internal surface area of the 3M™ media matrix
Depth of the 3M™ media provides increased residence time for IX – fluid as compared to membrane purifiers
The fixed media matrix results in no channeling of the chemistry

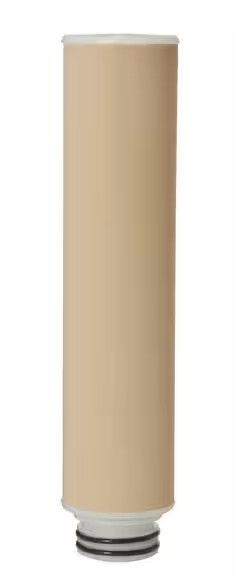

3M™ Metal Ion Purifier SCP Series Filter Cartridges help reduce metal ion contamination in photoresist and other high purity chemicals in the microelectronics industry.
Specifications
Details |
Brands | 3M™ |
Filter Technology | Metal Ion |
Filter Type | Surface |
Gasket/O-ring Material | FEP Encapsulated Fluorocarbon |
Industries | Industrial |
Maximum Operating Temperature (Celsius) | 60 ℃ |
Maximum Operating Temperature (Fahrenheit) | 140 ℉ |
Product Series | SCP |
Series | 3M™ SCP Series |
Units per Case | 1.0 |
Dimensions and Classìications |
Overall Diameter (Imperial) | 3.78 in |
Overall Diameter (Metric) | 47 mm |
Overall Length (Imperial) | 0.019 in, 2 in, 10 in |
Overall Length (Metric) | 0.5 mm, 5.08 cm, 25.4 cm |
Resources
Data Sheets (1)
3M™ Metal Ion Purifier PDF
Brochures (1)
3M SPSD Industrial Segment Filtration and Separation Brochure, USAC Version
Instructions (1)
3M™ Metal Ion Purifiers Installation and Operation Instructions
