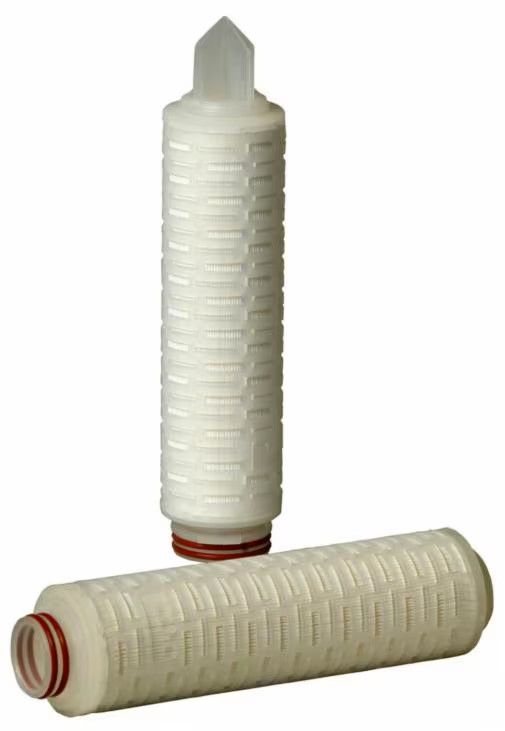

3M™ LifeASSURE™ EMZ Series Electronics Grade Filter

Liên hệ
Hết hàng
Mô tả đang cập nhật


  • Charge modified nylon membrane provides mechanical and electro-kinetic contaminant reduction to deliver extremely low particle counts
  • High flow rates allow new water systems to be optimized, decreasing capital costs
  • Low differential pressure allows existing systems to deliver desired flows for lower cost of ownership
  • Increased membrane area reduces particle loading per unit filter area thereby extending filter life and curtailing downtime and operator expense

The 3M™ LifeASSURE™ EMZ Series Electronics Grade Filter is a high efficiency naturally hydrophilic charge modified nylon membrane filter designed to meet the exacting requirements of DI water, critical parts cleaning and chemical applications.

Utilizing 3M’s multi-zone membrane technology and Advanced Pleat Technology (APT), the 3M™ LifeASSURE™ EMZ Series Electronics Grade Filter provides superior flow characteristics with minimal pressure drop. Increasing flow while maintaining filter efficiency results in particle count specifications being achieved in less time. This decrease in processing time results in lower total filtration costs. The naturally hydrophilic charge modified nylon membrane is in an all polypropylene construction which provides low extractable levels, increased filter life and superior contaminant reduction. 3M™ LifeASSURE™ EMZ Series Filters are ideally suited for DI water, critical parts cleaning and other high purity chemical applications where superior downstream cleanliness and high efficiency contaminant reduction is required.

Multi-Zone Membrane Technology
3M™ LifeASSURE™ EMZ series filters incorporate 3M SPSD’s multi-zone membrane technology to maximize contaminant holding capacity while maintaining particle reduction efficiency. The multi-zone membrane consists of a high porosity, large pore size zone on the upstream section and a tighter pore size zone on the downstream side. The higher porosity zone on the upstream side provides effective pre-filtration of large particles resulting in more efficient contaminant reduction capacity and increased filter life. The lower porosity zone on the downstream section provides a sharp retention cut-off at the rated pore size. The multi-zone structure enhances the internal surface area, lowers pressure drop, and increases contaminant holding capacity and filter life when compared to single zone membrane structures.

A History of Innovation
For more than a century, 3M has applied innovation and technology to improve our customers’ lives and support their business goals. From our headquarters in St. Paul, Minnesota, we serve industrial and commercial customers and consumers in nearly 200 countries. Across thousands of products, the 3M brand represents consistency, superior quality, and value. Our success begins with a culture of creative collaboration that inspires a never ending stream of powerful technologies and product solutions that make life better. We have an ability to apply our technologies – often in combination – to an endless array of real-world customer needs. Of course, all of this is made possible by the people of 3M and our singular commitment to make life easier and better for people around the world. Toward that end, 3M is committed to providing innovative, cost-effective products that help protect people, equipment and our environment. 3M Purification Inc. provides filtration and separation solutions for residential, foodservice, science labs, industrial, marine and other applications.






Component and Assembly


Effective Filtration Area11 ft², 22 ft², 33 ft², 44 ft²
End ConfigurationSingle Open End (SOE)
End Modification222 O-ring & flat cap,226 O-ring & spear,222 O-ring & spear
Factory Integrity Tested


Filter Material

Charge Modified Nylon 6,6

Filter Technology


Filter Type


Flow Rate (Imperial)

0.0 NP

Gasket/O-ring Material

Clear Silicone, EPR, Fluorocarbon, PTFE Encapsulated Fluorocarbon, Silicone

GradeEMZ004, EMZ010, EMZ020, EMZ045

Maximum Operating Temperature

80 ℃

Maximum Operating Temperature

176 ℉

Micron Rating (Absolute)

0.04 Absolute, @ 99.9%, 0.1 Absolute, @ 99.9%, 0.2 Absolute, @ 99.9%, 0.45 Absolute, @ 99.9%

Pleat Type

Advanced Pleat Technology (APT)

Product Form


Product Series


Product Type

Pleated Membrane


LifeASSURE™ EMZ Series

Units per Case



Dimensions and Classifications
Overall Diameter (Imperial)2.75 in

Overall Diameter (Metric)

7 cm

Overall Length (Imperial)

10 in, 20 in, 30 in, 40 in

Overall Length (Metric)

25.4 cm, 50.8 cm, 76.2 cm, 101.6 cm



Data Sheets (1)
